Pond Protection
Hexabird Float
Interlocking HDPE pond cover float with 41.6 sq in surface area per unit for waterfowl deterrence, evaporation reduction, and 15-year leach pond service.
- 01
Protect waterfowl from hazardous solution ponds
- 02
Maintain coverage even with gypsum build-up
- 03
Reduce evaporation, gas emissions, and heat loss
- 04
HDPE construction with carbon-black UV protection
Product configuration
Configure the right system
Resolve the correct SKU and watch active specs, curves, and tables update live.
Ready to configure?
Select product attributes to resolve the exact SKU and add it to your quote cart.
Interlocking HDPE pond cover float for waterfowl deterrence and evaporation reduction
Need help selecting the right configuration? Talk to an engineer
SKU: HEXABIRD
Technical Specifications
Base specifications for the active product configuration.
7 Specifications
Material
HDPE with carbon-black UV protection
Surface area per unit
41.6sq in
Weight (empty)
100g
Weight (with ballast)
650g
Service life
15years
Odor reduction
90%
Surface coverage
99%
| Specification | Value | Unit |
|---|---|---|
| Material | HDPE with carbon-black UV protection | - |
| Surface area per unit | 41.6 | sq in |
| Weight (empty) | 100 | g |
| Weight (with ballast) | 650 | g |
| Service life | 15 | years |
| Odor reduction | 90 | % |
| Surface coverage | 99 | % |
Performance data
Downloads & references

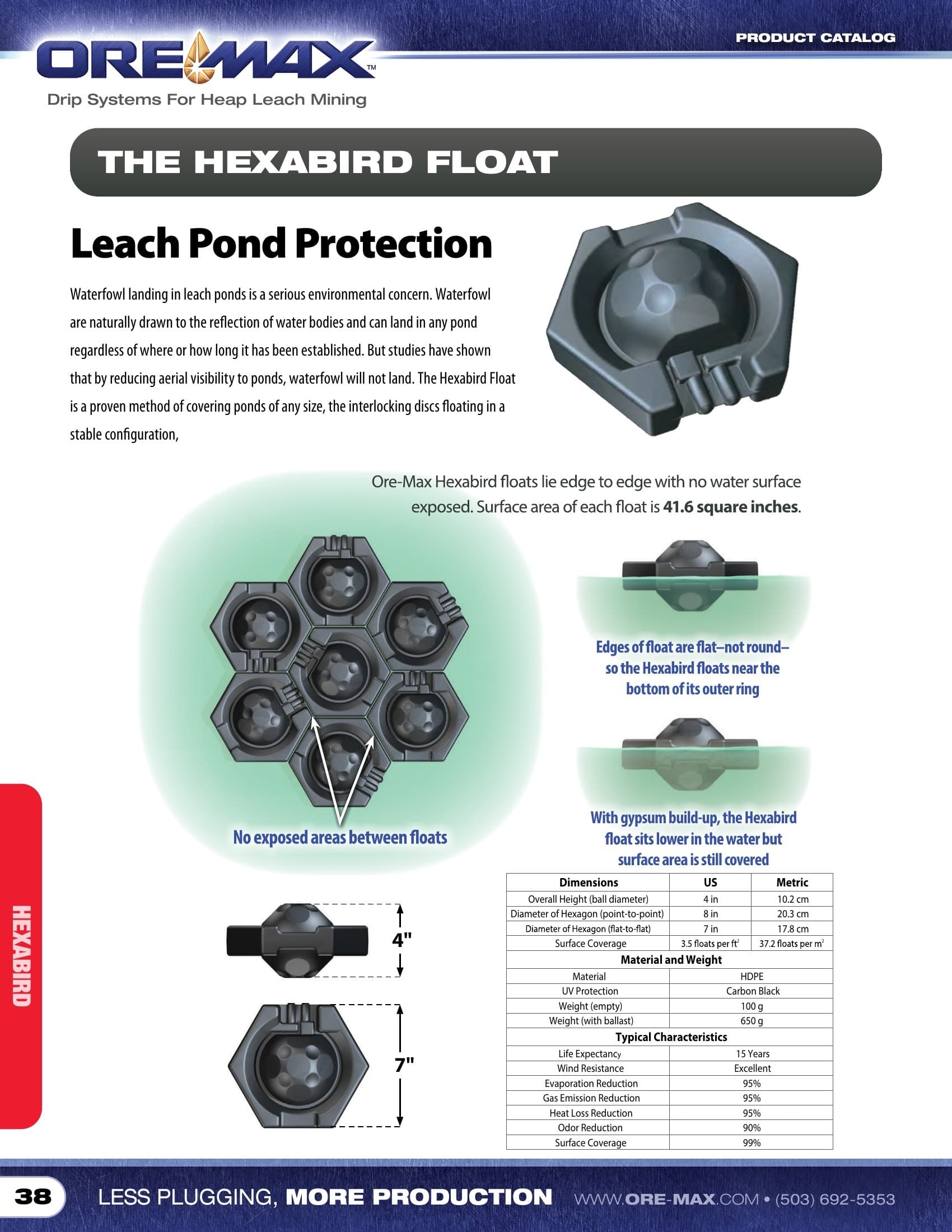

Ore-Max
Specification sheet
Download the product technical reference for configuration and packaging data.
Engineering data
Technical tables
Hexabird Float Dimensions and Performance
Published dimensional and performance data for the Hexabird floating pond cover system.
Showing 9 of 9 rows
| Metric | Imperial | Performance / Notes |
|---|---|---|
| 17.8 cm flat-to-flat | 7 in flat-to-flat | Hexagonal body dimension |
| 20.3 cm point-to-point | 8 in point-to-point | Overall span across corners |
| 10.2 cm height | 4 in height | Installed float profile |
| - | 268.4 sq cm | Surface area per unit |
| 100 g empty weight | 0.22 lb empty weight | Base unit weight before ballast |
| 650 g with ballast | 1.43 lb with ballast | Ballasted operating weight |
| - | - | 95% evaporation / gas emission / heat loss reduction |
| - | - | 90% odor reduction and 15-year life expectancy |
| - | - | 99% surface coverage |
Why choose this product
01
Deter waterfowl landings
Interlocking surface coverage reduces aerial visibility so birds are less likely to land on active solution ponds.
02
Keep ponds covered in harsh conditions
Stable floating geometry continues to cover the surface even when gypsum or scale accumulates on the pond.
03
Reduce process losses
Documented evaporation, gas-emission, and heat-loss reductions help improve pond operating efficiency.
Selected configuration
SKU HEXABIRD
Continue to consult on this configuration, or review system specification guidance.
Can't Find What You Need?
Our engineering team can help you identify the right product mix for your heap leach operation, or develop a solution for your specific site.
